Description
- Chrome Vanadium Diaphragm for maximum durability
- CI’s unique ER2 pressure plate patented technology for greater torque capacity
- Pressure plate made from high strength SG cast iron
- Forged clutch plate hub for maximum strength
PATENTED 4TERRAIN OFF ROAD COVER ASSEMBLY
4×4 systems need a higher torque capacity while retaining good pedal feel with fine modulation control. These characteristics inevitably increase heat which reduces service life. So the ideal 4×4 clutch system must also have improved heat dissipation. 4Terrain cover assemblies are in themselves high clamp load covers providing increased clamping force as compared to standard product. Also featuring the ER2 grooved cover which increase torque capacity while also increase heat dissipation.
SPHEROIDAL GRAPHITE CASTINGS
Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion.
BALANCED COVERS
To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all 4Terrain cover assemblies undergo a 2 stage balancing process.
HEAVY DUTY CLUTCH PLATE

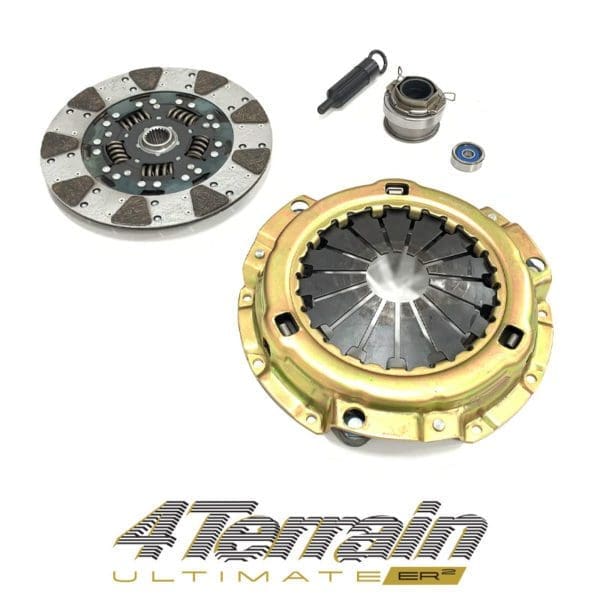

4Terrain Heavy Duty Clutch Kits feature an increase in organic friction material. These plates offer a 25% increase in friction material thickness compared with other clutch systems.This kit includes: 4TERRAIN ER2 Heavy Duty Cover Assembly, Heavy Duty Clutch Plate for improved operating life, Release bearing, Clutch Alignment Tool, Spigot Bearing.
- Clutch Plate Dimensions: 275 x 24T x 25.5
- Dual Mass Flywheel: Not Included
- Solid Flywheel: Not Included
- Concentric Slave Cylinder: Not Included
- Torque Capacity: Peak: 917Nm, Recommended: 642Nm
- Flywheel Spec: -6.0
- Spigot:RSB520
- Alignment:CAT120
Specifications
| Brand | 4Terrain Clutch |
|---|---|
| Part Number | 4TU3052N |
| Warranty | CI Heavy Duty, 4Terrain Heavy Duty & 4Terrain Ultimate Clutch Kits come with a 36 month warranty, or 50,000km’s, whichever occurs first, from date of purchase. |
| Type | Clutch Kits – 4×4 |
Suits
- NISSAN Navara NP300 (D23) May 2015 – Dec 2020, 2.3L, 4 cyl, 16V, DOHC, CRD, I/C Turbo, Diesel, D23, 120kW, EngCode: YS23DDT
- NISSAN Navara NP300 (D23) May 2015 – Dec 2020, 2.3L, 4 cyl, 16V, DOHC, CRD, I/C Twin Turbo, Diesel, D23, 140kW, EngCode: YS23DDTT
- NISSAN Navara NP300 (D23) Jan 2021 onwards, 2.3L, 4 cyl, 16V, DOHC, CRD, I/C Turbo, Diesel, D23, 140kW, EngCode: YS23DDTT
- NISSAN Navara NP300 (D23) Jan 2021 onwards, 2.3L, 4 cyl, 16V, DOHC, CRD, I/C Twin Turbo, Diesel, D23, 140kW, EngCode: YS23DDTT
Downloads
- PDF Download – 4TU3052N-6-TBC41
- PDF Download – 4TU3052N-7-TBC92Misalignment
- PDF Download – 4TU3052N-8-UYCS
