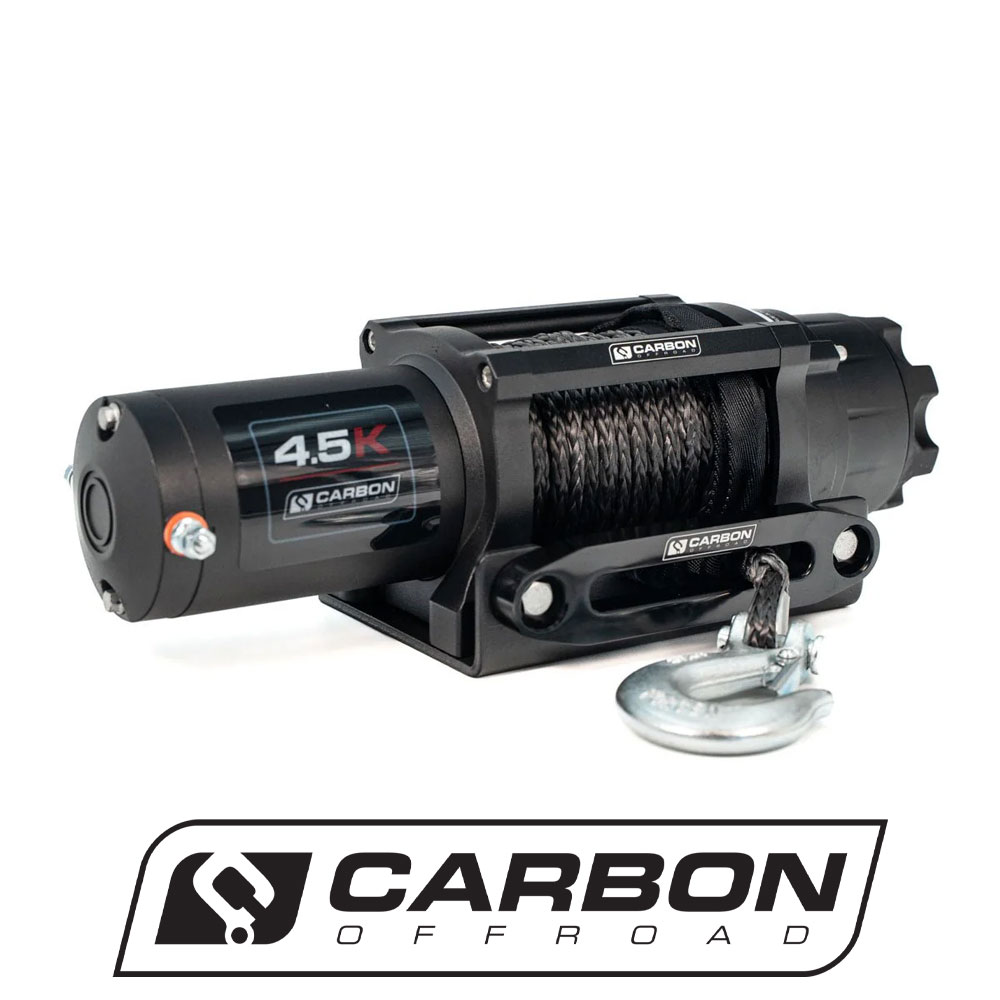

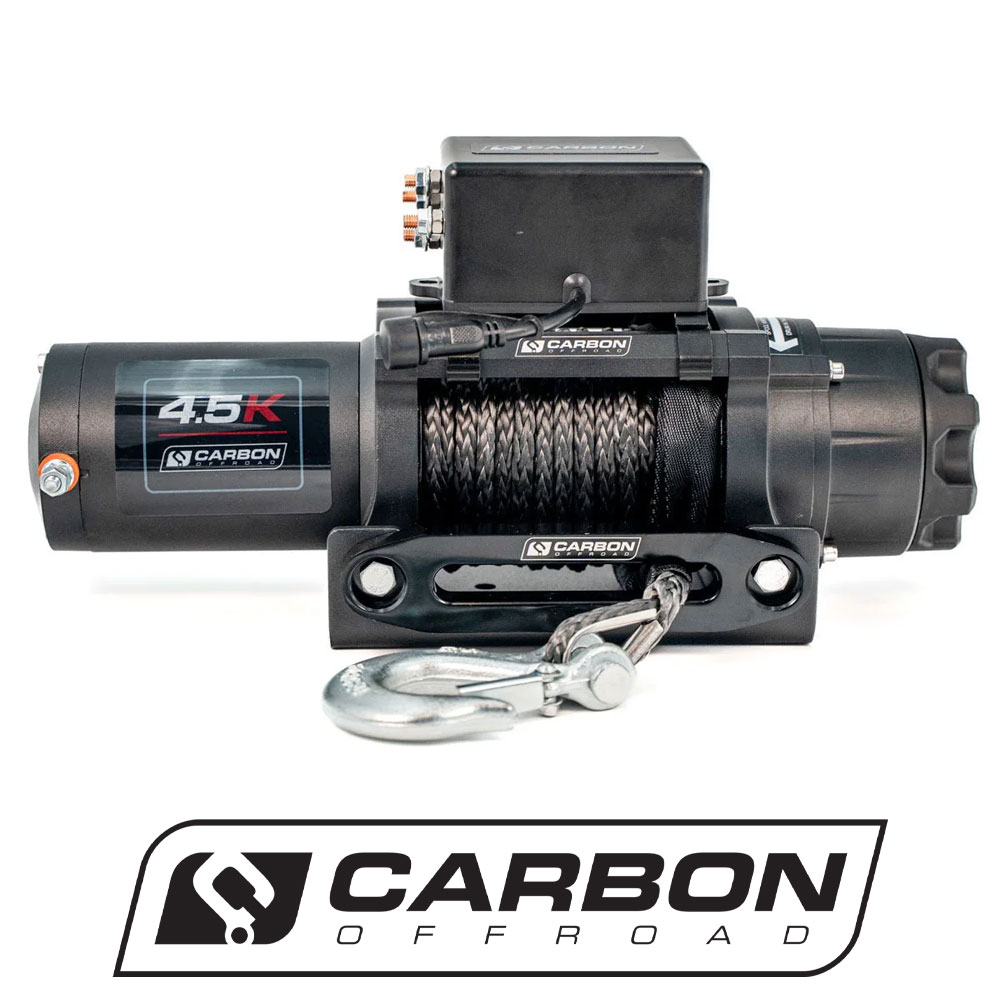

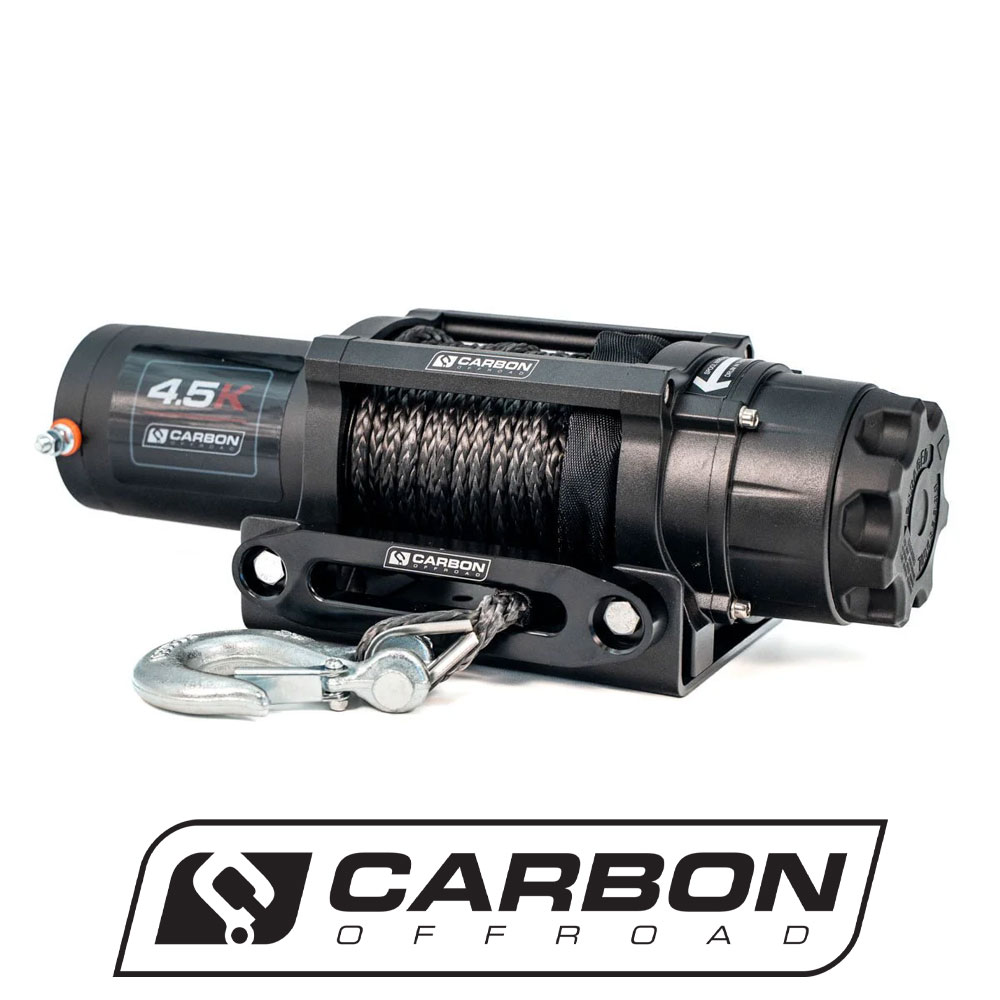

PRODUCT: Carbon 4.5k 4500lb ATV/Trailer Winch
BRAND: Carbon Offroad
PART NUMBER: CW-45
Carbon Offroad 4,500 lb ATV/UTV Winch – Compact, high-performance 12V winch with 3-stage planetary gearbox, synthetic rope, aluminium hawse fairlead, and wireless/handlebar controls. Ideal for trailers, ATVs, UTVs, and heavy-duty recovery.
4.5K – Mid‑range 4,500lb step‑up for beefier ATVs, side‑by‑sides, and tandem‑axle box trailers that occasionally push past the 3K’s comfort zone.
Why Choose an ATV Winch?
An ATV winch is your best mate when the ground gets rough. Stuck in mud? Climbing over rocks? Pulling a gear or a trailer? A good winch makes it easy. It saves time, keeps you safe, and gives you peace of mind. With a winch, you can:
- Pull your ATV free from sand, snow, or mud
- Recover a mate’s bike when they get stuck
- Tow small loads with ease
- Explore with more freedom, knowing you can get out of tough spots
When you buy ATV winch online in Australia from Carbon Offroad, you get the gear you can trust.
Built Tough for Australian Conditions
Not all winches are the same. Cheap winches can fail when you need them most. That’s why Carbon Offroad designs and tests every product for real Australian terrain. Our ATV winches are:
- Water resistant: Sealed motors keep out water and dirt
- Strong: Steel gears and synthetic ropes for max pull power
- Safe: Automatic brakes hold your load steady
- Easy to use: Simple controls, with both wired and wireless options
From sandy tracks to steep bush trails, our winches are ready for anything.
TECHNICAL FEATURES
- Part number: CW-12KV3X
- Rated Capacity: 4,500 lbs (2040 kg), single-line pull
- Motor: 12V DC, 1.9 HP permanent magnet motor
- Remote Control: Handlebar Mini-Rocker & Wireless Remote (included)
- Geartrain: 3-Stage Planetary, 176:1 ratio
- Brake System: Dynamic & Mechanical
- Durability Enhancements: Tie bars for stability
- Synthetic Rope: 43’ (13m) x 1/4” (6.35mm)
- Fairlead: CNC billet alloy black anodised with laser etched logo
12V DC PERFORMANCE SPECS
| Line Pull | Line Speed | Motor Current | Pull By Layer |
|---|---|---|---|
| 0 lbs (0 kg) | 20.4 ft/min (13.2 m/min) | 31 amps | 1/4500 (2040) |
| 1000 lbs (454 kg) | 14.2 ft/min (3.5 m/min) | 65 amps | 2/3750 (1700) |
| 2000 lbs (907 kg) | 10.9 ft/min (2.8 m/min) | 96 amps | 3/3510 (1595) |
| 3000 lbs (1360 kg) | 7.7 ft/min (2.4 m/min) | 125 amps | 4/3300 (1500) |
| 4500 lbs (2040 kg) | 4.9 ft/min (2.1 m/min) | 175 amps |

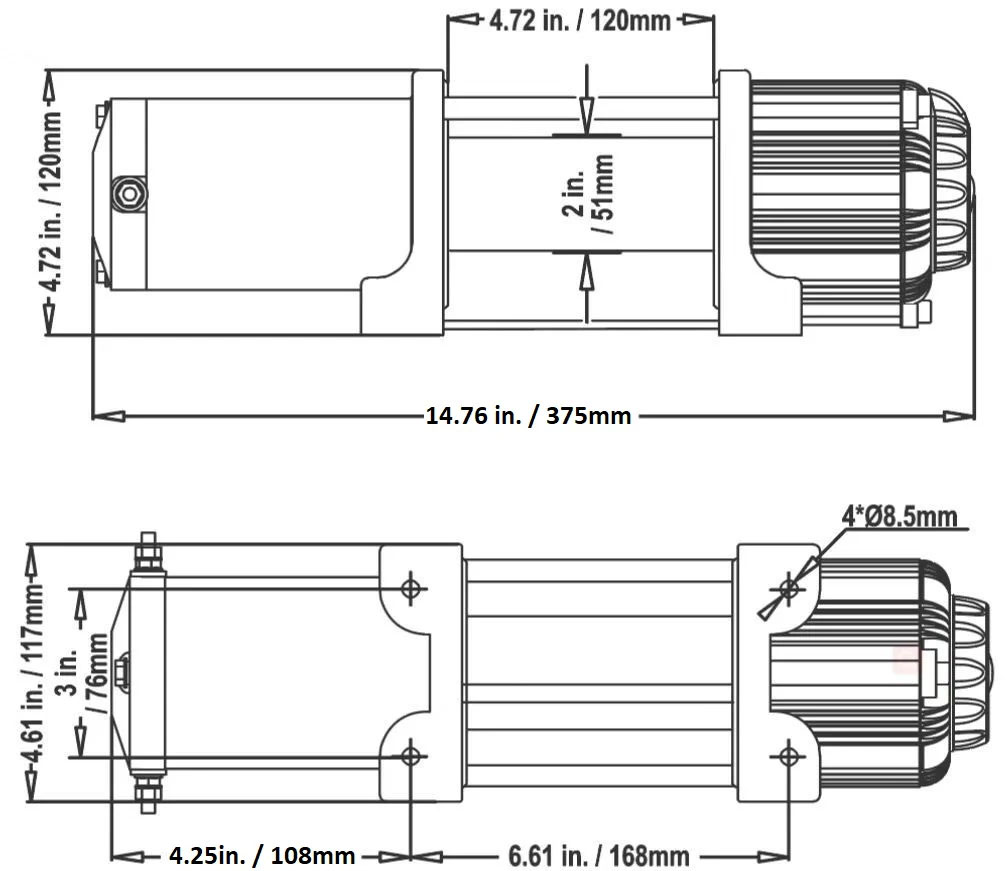

WINCH DIMENSIONS
INSTALLATION & USER GUIDE
